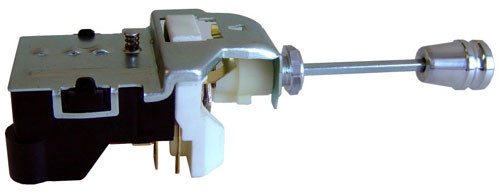

#12354 - Headlight Switch

$25.00
Current Stock:
3
SKU:
#12354
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

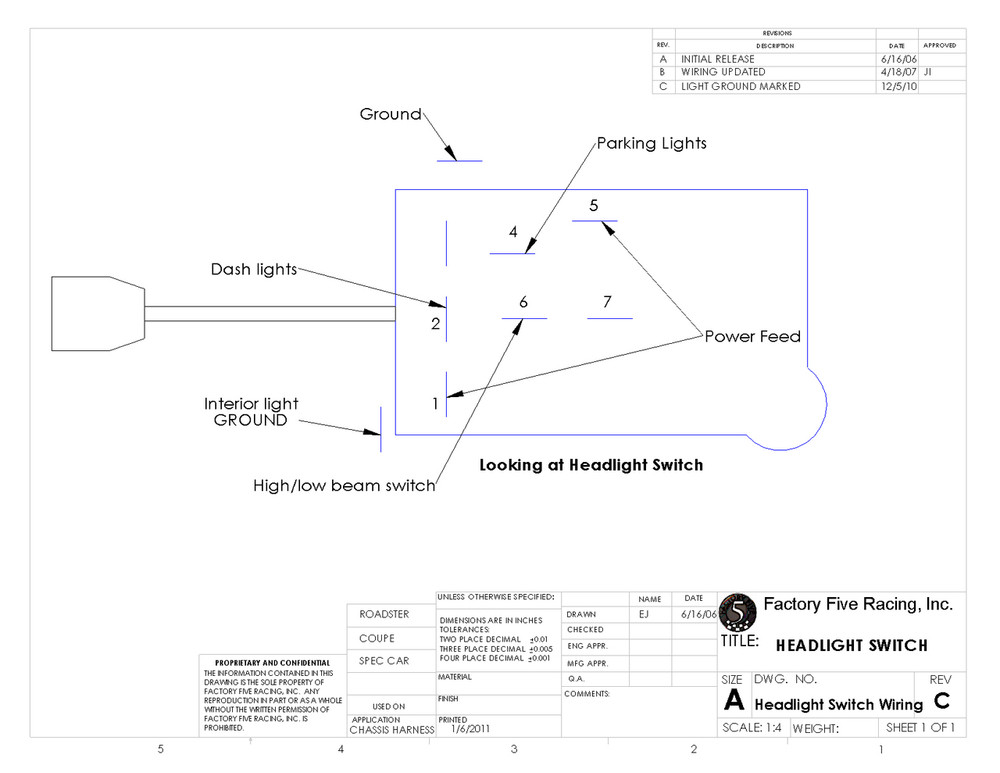

We include this headlight switch in our complete Roadster and Coupe kits as well as the '33 Hot Rod. It works well in any carbureted or fuel injected car, and is a nice addition to a donor build. The switch is designed to be dash mounted and really adds a finished look to the controls for your car. It is rated at 15 amps with an integrated internal circuit breaker, and has a built in 4.5 ohm dimmer for the gauge lighting. The switch operates as a push-pull style, and the dimmer is operated by turning the knob. Terminals can be wired via spade connectors or with the single plastic connector body found only in our 14503 Chassis Harness. The chassis harness and single connector allow for a factory style installation and easy removal in the future if necessary. Applications -Any car with a 12v electrical system

Click here to download the assembly instructions.
